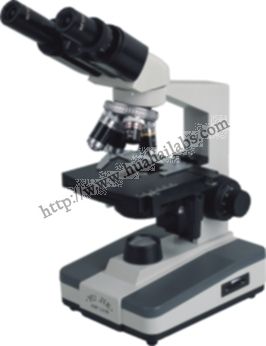

45mm DIN Achromatic Objective：4X，10X，40X(S)，100X(S, Oil)
Wide Field Plane-Scope Eyepiece：WF10X；Binocular head
Total Magnification：40X-1000X
Articulated Free Binocular Head，Interpupillary Distance：55-75mm；30º Inclined，360º Rotatable
Double Layers Mechanical Stage：125X130mm, Moving Range X-Y：60X30mm
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter；ABBE Condenser：N.A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism：20mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W（or Incandescent, or Fluorescent, or LED）
Net Weight/Set：4.3kg；
Package：4 Sets/Carton 69X45X47cm；
Gross Weight/Carton：20kg

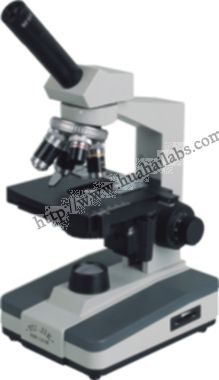

45mm DIN Achromatic Objective：4X，10X，40X(S)，100X(S, Oil)
Wide Field Plane-Scope Eyepiece：WF10X； Monocular head
Total Magnification：40X-1000X
Monocular Head，45º Inclined，360º Rotatable
Double Layers Mechanical Stage：130X140mm, Moving Range X-Y：70X50mm
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter；
ABBE Condenser：N.A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism：20mm，Precision：0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System
Net Weight/Set：5kg；
Package：2 Sets/Carton 53X37X49cm；
Gross Weight/Carton：13kg
