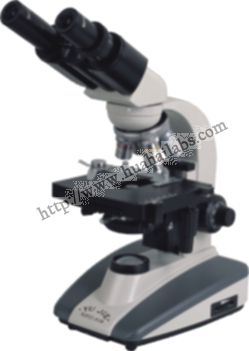

45mm DIN Achromatic Objective：4X，10X，40X(S)，100X(S, Oil)
Wide Field Plane-Scope Eyepiece：WF10X，WF16X；Binocular head

Total Magnification：40X-1600X
Articulated Free Binocular Head，Interpupillary Distance：55-75mm；30º Inclined，360º Rotatable
Double Layers Mechanical Stage：140X155mm, Moving Range X-Y：70X50mm
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter；
ABBE Condenser：N.A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism：35mm，Precision：0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W
Net Weight/Set：5.8kg；
Package：2 Sets/Carton 54X33X43cm；
Gross Weight/Carton：15kg









45mm DIN Achromatic Objective：4X，10X，40X(S)，100X(S, Oil)

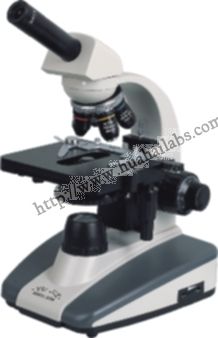

Wide Field Plane-Scope Eyepiece：WF10X，WF16X；Monocular head
Total Magnification：40X-1600X
Monocular Head，30º Inclined，360º Rotatable
Double Layers Mechanical Stage：140X155mm, Moving Range X-Y：70X50mm
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter；
ABBE Condenser：N.A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism：35mm，Precision：0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W；
Net Weight/Set：5.2kg；
Package：2 Sets/Carton 54X33X43cm；
Gross Weight/Carton：14kg
