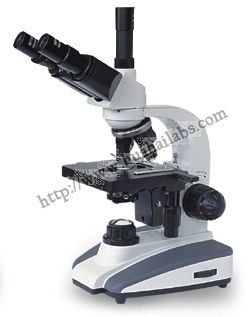

Model:XSP-136T

DESCRIPTION

VIEWING HEAD: Compensation trinocular  head. Inclined at 30°(55mm-75mm)

EYEPIECE: WF10X

OBJECTIVE: Achromatic objective:4X,10X,40X(S)

STAGE: Double layers mechanical stage, Stage size:140mm×140mm, Moving range:75mm×75mm

CONDENSER: N . A.1.25 abbe condenser with iris diaphragm & filter

FOCUSING: Coaxial xoarse & fine focusing adjustment with rack and pinion mechanism ,

 fine focusing scale value 0.002mm

COLLECTOR: High brightness collector and can be interconverted with Kohler illumination

LIGHT SOURCE: Halogen bulb 6V/30W.AC 85V_230V,  Adjustable brightness
