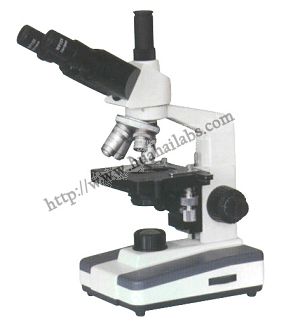

MODEL:SME-F4T
Specification:
Viewing head: Trinocular head, inclined at 30°inclined,360°rotatable
Eyepiece: WF10X
Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Stage: Double layers mechanical stage size 110 x 126mm, moving range 70x 30mm
Focusing: Coaxial coarse & fine focusing adjustable
Condenser: Abbe condenser with iris diaphragm N.A.1.25
Illumination: Halogen lamp, 220V/110V, 6V/20W
Optional accessories:
Eyepiece:WF16X,WF20X,P16X
Objective:20X(S), 60X(S)
Mirror, Demonstration head, and CCD adaper
