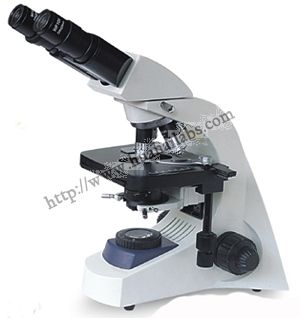

MODEL: XSZ-148
Specification:
Viewing head: Compensation free binocular head. Inclined at 30° (55mm-75mm)
Eyepiece: WF10X
Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Stage: Double layers mechanical stage size 180 x 150mm, moving range 75 x 50mm
Condenser: N.A.1.25 Abbe condenser with iris diaphragm & filter
Focusing: Coaxial coarse & fine adjustment with rack and pinion mechanism fine focusing scale value 0.002mm
Collector: High brightness Kohler illumination
Light source: Halogen bulb 12V/20W.AC 85V_230V, Adjustable brightness
