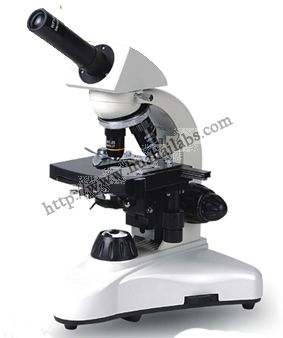

MODEL: XSZ-152A MONOCULAR MICROSCOPE
Specification:
Viewing head: Monocular head. Inclined at 45°
Eyepiece: WF10X
Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Stage: Double layers mechanical stage size 125mm x 130mm, moving range: 75 mm x 50mm
Condenser: N.A.1.25 Abbe condenser with iris diaphragm & filter
Focusing: Coaxial coarse & fine adjustment with rack and pinion mechanism fine focusing scale value 0.002mm
Collector: High brightness light collector
Light source: Halogen bulb 6V/20W. Adjustable brightness
Power supply: 220V/110V
Packed in a Styrofoam box with full accessories and a wooden suitcase for carrying
