HB04042B, BIOLOGICAL MICROSCOPE

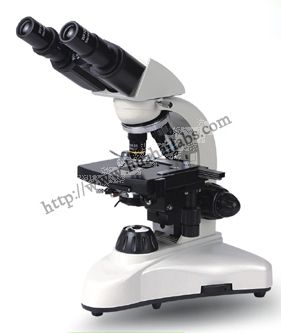

MODEL: XSZ-152B BIOLOGICAL MICROSCOPE

Specification:

Viewing head: Compensation free binocular head. Inclined at 30°

Eyepiece: WF10X

Interpupillary distance: 55mm-75mm

Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Stage: Double layers mechanical stage size 125mm x 130mm, moving range: 75 mmx 50mm

Condenser: N.A.1.25 Abbe condenser with iris diaphragm & filter

Focusing: Coaxial coarse & fine adjustment with rack and pinion mechanism fine focusing scale value 0.002mm

Collector: High brightness ligh collector

Light source: Halogen bulb 6V/20W. Adjustable brightness

Power supply: 220V/110V

Packed in a Styrofoam box with full accessories and a wooden suitcase for carrying
