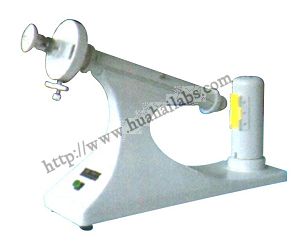

MODEL WXG-4, DISC POLARIMETER

It is a kind of instrument for determining the optical rotation of substance. The concentration, purity, sugar degree, or content of a substance can be determined by means of optical rotation with a sample.

Specification:

Measuring range: -180°~ +180°

Readability: ±0.05°

Accuracy: ±0.05°

Sensitivity:≤0.05°

Length of test tube: 100mm, 200mm

Light source: Sodium lamp (wavelength: 589.44nm)

Power supply: AC220±22V, 50Hz, 20W

Weight: 7.6 kgs

Dimension: 510 x 135 x 250 mm
