1.      The supporting bracket is made of aluminum alloys, all joints are installed with locking block, sturdy and durable.

2.      A universal caster with locking function is installed below the supporting bracket, making the whole teaching board easy to move and fix during the experiment process and routine maintenance ；

3.      Because the supporting bracket is made of aluminum alloys, it can keep the device from rusting of the changeable environment, and improve the durability of the device.

starter： planetary gear reduction starter

Power supply：12V DC

Weight： 50±10Kg

Operating temperature：0～80℃

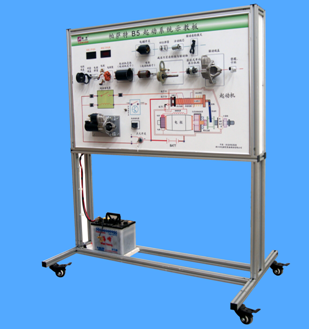

1.    Device panel with starting system fundamental diagram ,which is convenient for teaching；

2.    The upper part of the device layouts disintegration component of same type of starter. The lower part of the device with starting system schematics in color, layouts the normal operation of the starter, which can simulate the actual working conditions of car starter.

3.    The detection terminals on the device panel can directly test each component values;；

4.    The digital voltmeter and ammeter on the device panel can directly reflect the system operation data;

5.    The starter can start normally operation, completely reflect the function of real starter.

1.      Structural understanding of the starting system

2.       simulation run of the starting system

3.       Starting voltage analysis experiment

4.      Components measurement of the starting system

5.      Working signal measurement of the starting system

6.      Comprehensive detection and analysis of the starting system
