1. Support bracket is made ​​of aluminum alloy. It is firm and durable with locking block installed in each connection.
2. Casters with lock-up function are installed under support bracket, which are convenient to move and fix in the experimental process and daily maintenance.
3. The support bracket made ​​of aluminum alloys is not easy to rust due to environment changes, which improve equipment useful life.

  Automotive type: Santana

  Power supply: 12V DC

  Weight: 50±10Kg

  Temperature: 0～80℃

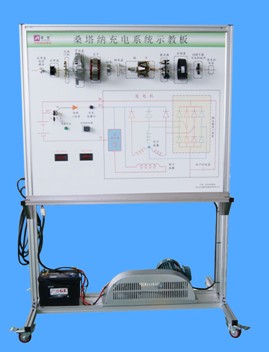

1. Charging system principle diagram is painted on the instrument panel to facilitate teaching.
2. The components of the same generator are laid out on the upper portion; the colorized charging system diagram is on the lower portion. Meanwhile, the device is equipped with normal generator, which can simulate vehicle actual working condition.

3. Instrument panel with test terminals can directly detect each component value.

4. Generators can simulate power generation. The motor supplies power.

1.        Charging system structure cognition

2.        Charging system simulated operation

3.        Charging system voltage analysis

4.        Charging system element detection

5.        Charging system working signal detection

6.        Charging system comprehensive detection
