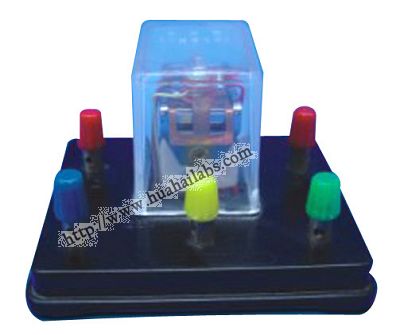

Mounted on bakelite base. Used for demonstration or experiments on the working principle of electromagnetic relay and the principle of autocontrol.
Specification:
Rated voltage: DC 6V
Rated current: 30mA±10%
Actuating current: ≤20mA
Releasing current: >7.5mA
Control voltage: ≤220V
Control current: ≤1A
Dimensions: 80 x 50 x 70mm
